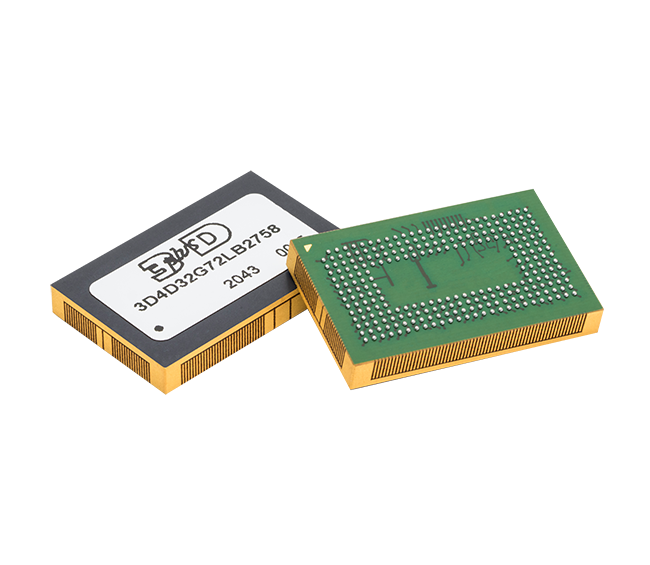

  • DDR4 SDRAM 32Gbit military and defense memory 3D4D32G72LB2758
    DDR4 SDRAM 32Gbit military and defense memory 3D4D32G72LB2758 DDR4 SDRAM INDUSTRIAL
Demande d'information

High-Performance DDR4 Memory Modules by 3D PLUS

3D PLUS specializes in delivering compact, high-performance DDR4 SDRAM memory modules designed for applications that demand robust and reliable high-speed computing memory. Our modules integrate termination resistors and decoupling capacitors, ensuring optimal performance and durability. Leveraging our advanced stacking technology, 3D PLUS DDR4 SDRAM ruggedized modules offer exceptional reliability in BGA packages, making them ideal for harsh environments. With a high density of up to 128 Gbit, a bus width of 72 bits, and fast data transfer rates up to 2400 Mbps, these modules are engineered for efficiency and speed.

Applications in Military and Defense

Available in both Industrial and Military temperature ranges, these modules ensure operation in extreme conditions, making them perfect for military and defense applications. Additionally, 3D PLUS guarantees long-term supply continuity, ensuring sustained support for your projects.

Our DDR4 memory modules are specifically engineered for use in the military and defense industries, where reliability and performance under harsh conditions are critical. Whether it’s for aerospace, naval, or ground-based systems, 3D PLUS ensures that your memory solutions meet the highest standards of durability and efficiency.

Key features

  • Density up to 128 Gbit

  • Bus width: 72 bits

  • Data transfer: 2400 Mbps

  • Decoupling capacitors and Termination resistors included

  • Available in Industrial and Military temperature range

  • Long term supply continuity

Line up DDR4 SDRAM 32Gbit military and defense memory 3D4D32G72LB2758

Line Up

Each 3D PLUS standard product and SiP solution are defined by a specific part number based on the part number decoder provided below. The ordering information consist as a minimum of the following 3 items for fully define a product:

  • The product’s Part Number
  • The temperature range
  • The quality grade

For High Reliability products or SiPs for Aerospace applications, a Source Control Drawing (SCD#) referenced 3DPA-xxxx is available for each product. It shall be used for its procurement in addition to other ordering information.

Memory Part Number Decoder



Part Number Density Configuration Voltage Clock rate Package Temperature Balls
3D4D32G72LB2758 32Gbit 512Mbit x 64 + 8 b ECC 1.2 V 1200 MHz BGA 267 I, S, M SnPb
3D4D64G72LB2809 64Gbit 1024 Mbit x 64 + 8 b ECC 1.2 V 1200 MHz BGA 267 I, S, M SnPb
3D4D128G72LB2844 128Gbit 2048 Mbit x 64 + 8 b ECC 1.2 V 1200 MHz BGA 267 I, S, M SnPb



Documentation

Other technical documentation is available under request: IBIS, RTL, Step and Mechanical file, Radiation Report.

P/N Density Datasheet
3D4D32G72LB2758 32Gbit Datasheet PDF - 2712ko Télécharger
3D4D64G72LB2809 64Gbit Datasheet PDF - 1990ko Télécharger
3D4D128G72LB2844 128Gbit Datasheet
